100 GDP REVERSE OSMOSIS WATER FILTER
Pure Water.
Compact RO Performance.
The Nectar 100 GDP Reverse Osmosis Water Filter
provides purified drinking water through a
multi-stage reverse osmosis filtration process.
Designed for kitchens, homes, offices and small
commercial applications, the wall-mounted system
combines compact installation with high-capacity
water purification and a 4-gallon storage tank.
01
100 GPD
High-capacity purified water production.
02
Multi-Stage RO
Progressive filtration for purified drinking water.
03
4 Gallon Tank
Built-in storage for convenient water availability.
04
Space Saving
Compact wall-mounted installation.
100 GDP RO PURIFICATION SYSTEM
Multi-Stage Purification For Cleaner Drinking Water
The Nectar 100 GDP Reverse Osmosis system is designed
to progressively treat incoming water through multiple
filtration stages before producing purified drinking water.
RO
Reverse Osmosis
The thin-film reverse osmosis membrane provides
fine filtration with a 0.0001 micron rating and
helps reduce dissolved impurities.
CARBON
Carbon Filtration
GAC and CTO carbon cartridges help reduce chlorine,
chemical compounds, tastes and odors before and
after the RO membrane.
UV
UV Sterilization
The UV stage provides additional treatment against
bacteria, viruses and protozoa cysts.
FEATURES & BENEFITS
Built For Reliable Everyday Water Purification
The 100 GDP RO system combines sediment filtration,
carbon treatment, reverse osmosis, post-carbon
filtration, mineral treatment and UV sterilization
in one practical drinking water system.
Its wall-mounted configuration helps save space while
the included storage tank provides purified water
when required.
01
High-Capacity RO
Designed for approximately 70–100 gallons
of purified water production per day.
02
Multi-Stage Protection
Sediment, GAC, CTO, RO membrane, post-carbon,
mineral and UV treatment stages.
03
Compact Wall-Mounted Design
Designed to make efficient use of available
kitchen and installation space.
04
Automatic Operation
Includes an automatic shut-off valve for
convenient system operation.
INSIDE THE SYSTEM
How The 100 GDP RO System Works
Water passes through a series of dedicated filtration
and purification stages before reaching the storage tank
and drinking water outlet.
STAGE 01
Sediment Filter
The first stage helps reduce sediment, dust and
suspended particles from the incoming water.
STAGE 02
GAC Carbon
The GAC carbon cartridge helps reduce chlorine,
tastes, odors and selected organic compounds.
STAGE 03
CTO Carbon
The CTO carbon block provides additional carbon
filtration before water reaches the RO membrane.
STAGE 04
RO Membrane
The thin-film RO membrane provides fine filtration
at a rated 0.0001 micron and reduces dissolved
impurities.
STAGE 05
Post Carbon
The in-line post-carbon filter provides final
carbon treatment to improve water taste and odor.
STAGE 06
Mineral & Alkaline
The in-line mineral cartridge provides mineral and
pH-related post-treatment before final sterilization.
STAGE 07
UV Sterilization
The UV sterilizer provides additional treatment
against bacteria, viruses and protozoa cysts.
THE FULL SYSTEM
Progressive Filtration From Inlet To Outlet
Incoming water first passes through sediment and
carbon filtration to reduce suspended particles,
chlorine and unwanted tastes and odors.
Water then passes through the reverse osmosis
membrane for fine purification before moving through
the post-carbon and mineral stages.
The final UV stage provides additional sterilization
before purified water is supplied for drinking.
EVERYDAY VALUE
Purified Water For Everyday Use
The Nectar 100 GDP Reverse Osmosis system provides
purified drinking water through a multi-stage
filtration process, making it suitable for homes,
offices and small commercial applications.
100 GPD Production
Designed to produce approximately 70–100
gallons of purified water per day,
subject to feed water conditions.
Multi-Stage RO Filtration
Combines sediment, carbon, RO membrane,
post-carbon and mineral filtration stages.
4 Gallon Storage
Includes a 4.0 gallon storage tank for
convenient access to purified water.
Built-In UV Protection
UV sterilization provides additional
protection against bacteria, viruses
and protozoa cysts.
DESIGNED FOR PRACTICAL USE
Compact RO Purification For The Kitchen
The 100 GDP RO system is designed to provide a
practical purified water solution without requiring
a large floor-mounted installation.
Space-Saving Design
The wall-mounted configuration helps make
efficient use of available kitchen space.
Stand & Gauge
The system is supplied with a stand and
gauge arrangement for practical installation
and pressure monitoring.
Automatic Operation
Includes an automatic shut-off valve for
convenient RO system operation.
Complete Installation Kit
Supplied with the required fittings and
installation accessories.
PRODUCT SPECIFICATIONS
Technical Details
Key technical specifications of the Nectar
100 GDP Reverse Osmosis Water Filter.
Daily Production Rate
70–100 GPD
Recovery Rate
50–60%
RO Membrane Rating
0.0001 Micron
Minimum / Maximum Pressure
30 / 100 PSI
Minimum / Maximum Temperature
4°C–38°C
Storage Capacity
4.0 Gallons
Product Weight
8 kg
Product Dimensions
64 × 46 × 50 cm
Installation
Wall Mounted
Warranty
2 Years
CARTRIDGE MAINTENANCE
Simple Scheduled Maintenance
Replacement intervals depend on water quality and
usage. Cartridges should be replaced earlier where
water conditions require it.
STAGE 01
Sediment Filter
Replace every 1–3 months or earlier subject to
water quality.
STAGE 02
GAC Carbon
Replace every 3–4 months or earlier subject to
water quality.
STAGE 03
CTO Carbon
Replace every 3–4 months or earlier subject to
water quality.
STAGE 04
RO Membrane
Replace every 1–1.5 years or earlier subject to
water quality.
STAGE 05
Post Carbon
Replace every 4–6 months or earlier subject to
water quality.
STAGE 06
Mineral Cartridge
Replace after 1 year or approximately 4,000 litres,
subject to water quality.
STAGE 07
UV Sterilizer
Replace after approximately 9,000 hours of
operation.
SHIPPING INFORMATION
Supplied As A Complete RO System
The product is supplied in two shipping boxes to
accommodate the complete RO filtration unit and
associated components.
Box 1
16.5″ × 11.5″ × 10″
Box 2
16″ × 9″ × 19″
Shipping Weight
Box 1: 4 kg · Box 2: 9.7 kg ·
Total: 13.7 kg

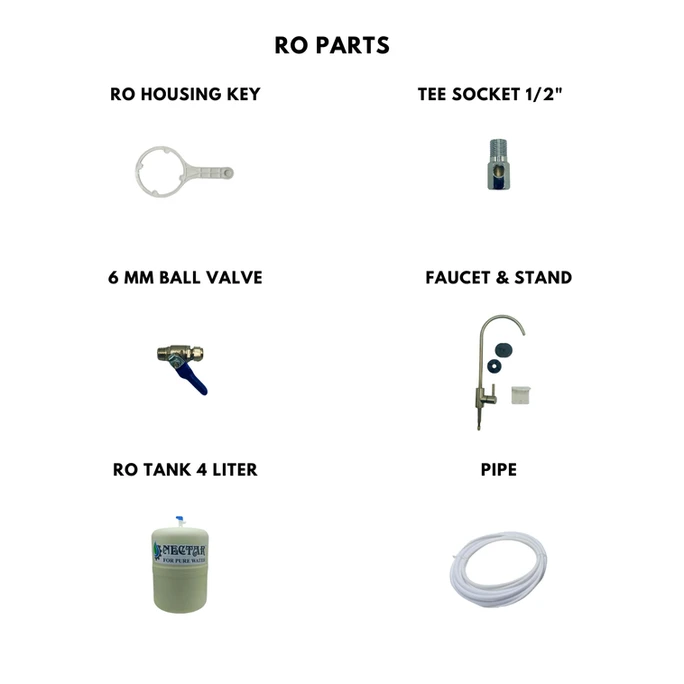

WHAT’S IN THE BOX
Everything You Need To Start
The 100 GDP RO package includes the complete
purification system together with its storage tank,
fittings and installation accessories.
COMPLETE PACKAGE
Complete RO Unit + Installation Accessories
The package includes one complete 100 GDP Reverse
Osmosis unit with the associated components required
for installation and operation.
Complete RO Unit
Complete multi-stage reverse osmosis
filtration system.
4.0 Gallon Storage Tank
Storage tank for purified drinking water.
Quick-Connect Fittings
Fittings for the associated RO components.
Automatic Shut-Off Valve
Automatic operation and water shut-off.
Complete Installation Kit
Required accessories for installation.
APPLICATIONS
Suitable For Homes, Offices & More
Its production capacity and compact wall-mounted
configuration make the system suitable for a range
of drinking and water-use applications.
Home Use
Provides purified drinking water for
households and families.
Offices & Small Businesses
Suitable for staff and guest drinking
water requirements.
Restaurants & Cafés
Suitable for purified water used in
beverages, cooking and drinking.
Laboratories & Aquariums
Can be used where reduced dissolved
impurities are required for specific
water applications.
NECTAR WATER FILTRATION SYSTEMS
Trusted Water Filtration Expertise
Nectar has been developing and supplying water
filtration solutions in Pakistan since 1983.
The 100 GDP RO system brings practical reverse
osmosis purification into homes, offices and
small commercial applications.
1983
Established
100 GPD
Production Capacity
4 Gal
Storage Capacity
2 Years
Warranty
GOOD TO KNOW
Questions, answered
What is the production capacity of the 100 GDP RO system?
+
of approximately 70–100 GPD, subject to feed water
conditions and operating pressure.
What is reverse osmosis?
+
that uses a semi-permeable membrane to reduce
dissolved impurities from water.
What filtration stages does this system have?
+
thin-film RO membrane, post-carbon, mineral/alkaline
treatment and UV sterilization stages.
How much water does the storage tank hold?
+
4.0 gallons.
What is the RO membrane rating?
+
0.0001 micron.
What pressure does the system require?
+
range is 30–100 PSI.
When should the cartridges be replaced?
+
The sediment filter is generally replaced every
1–3 months, GAC and CTO every 3–4 months, the RO
membrane every 1–1.5 years, post-carbon every
4–6 months, and the mineral cartridge after
approximately 1 year or 4,000 litres. The UV
sterilizer should be replaced after approximately
9,000 hours of operation.
What is the operating temperature range?
+
4°C to 38°C.
What is included in the box?
+
4.0-gallon storage tank, quick-connect fittings,
an automatic shut-off valve and a complete
installation kit.
What are the product dimensions and weight?
+
the product weight is approximately 8 kg.
What is the warranty?
+
with a 2-year warranty.
