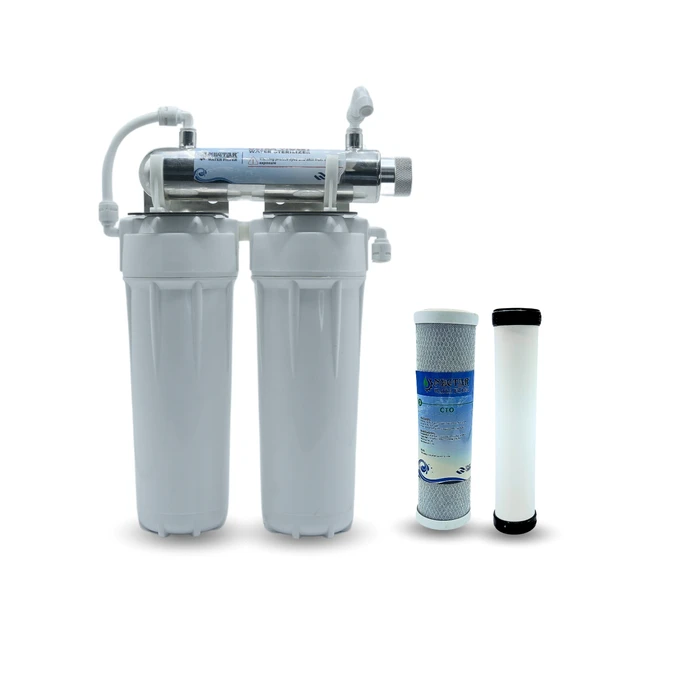

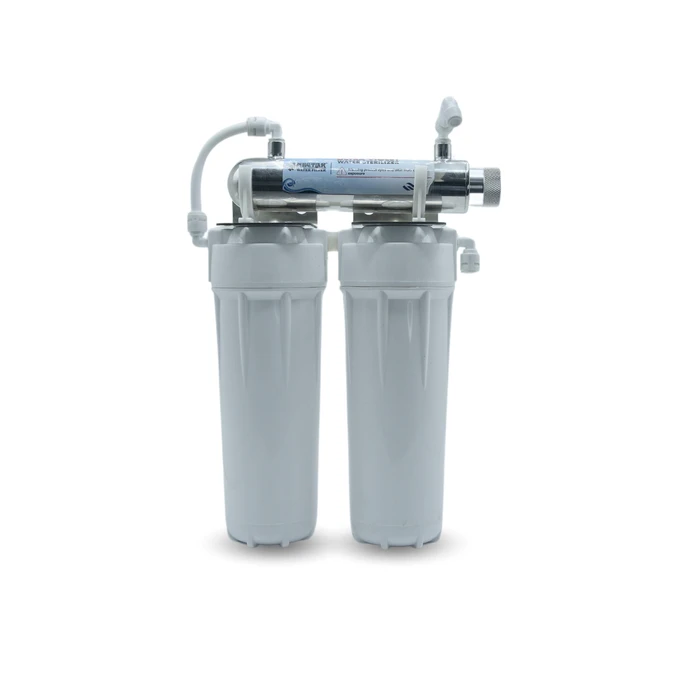

NML-3 WITH UV TRIPLE STAGE DRINKING WATER FILTER
Three Stages.
UV Protection.
Advanced ceramic filtration, additional carbon treatment
and ultraviolet disinfection combined in one practical
point-of-use drinking water filtration system.
The Nectar NML-3 with UV combines a 3-in-1 ceramic
cartridge, an additional carbon stage and a UV lamp
to provide progressive filtration and final
disinfection of drinking water.
01
Triple-Stage
Ceramic, carbon and UV treatment.
02
UV Disinfection
Ultraviolet treatment for pathogenic microorganisms.
03
120 L/hr
Approximate filtration flow rate.
04
Since 1983
Backed by Nectar’s filtration expertise.
NML-3 WITH UV FILTRATION SYSTEM
Filtration Plus UV Disinfection
A complete point-of-use drinking water system that combines
ceramic filtration, additional carbon treatment and
ultraviolet disinfection for enhanced drinking water
protection.
CERAMIC
3-in-1 Ceramic Filtration
The first stage combines ceramic filtration, silver
impregnation and activated carbon to reduce sediment,
retain fine particles, provide antibacterial protection
and improve taste and odor.
CARBON
Additional Carbon Stage
The second stage provides additional carbon treatment
to further improve taste and water quality while
reducing unwanted odors and chemical impurities.
UV
Ultraviolet Disinfection
The final stage uses ultraviolet light to disinfect
water by targeting pathogenic microorganisms before
the treated water reaches the drinking outlet.
FEATURES & BENEFITS
Multi-Barrier Protection For Drinking Water
The NML-3 with UV combines physical filtration,
carbon treatment and ultraviolet disinfection into
one structured point-of-use drinking water system.
The combination is designed to progressively improve
water quality before the final UV disinfection stage.
01
3-in-1 Ceramic Protection
The ceramic cartridge combines sediment
filtration, silver impregnation and activated
carbon treatment.
02
Additional Carbon Treatment
The second stage provides additional carbon
filtration to improve taste and quality of
the treated water.
03
UV Disinfection
Ultraviolet treatment provides a final
disinfection barrier against pathogenic
microorganisms.
04
Point-of-Use Protection
Designed to reduce piping contamination and
provide treated drinking water directly at
the point of use.
INSIDE THE SYSTEM
How NML-3 With UV Works
Water passes through three dedicated treatment stages,
beginning with ceramic filtration and carbon treatment
before reaching the final UV disinfection stage.
STAGE 01
3-in-1 Ceramic Filter
The ceramic shell helps reduce sediment and fine
particles. Silver impregnation provides a
disinfection function, while the activated carbon
layer helps reduce taste, odor and unwanted
chemical impurities.
STAGE 02
Additional Carbon Stage
The second filtration stage provides additional
carbon treatment to further improve taste and
overall water quality.
STAGE 03
UV Disinfection
The final UV stage exposes the treated water to
ultraviolet light to disinfect pathogenic
microorganisms before the water reaches the outlet.
THE FULL SYSTEM
Filter First. Disinfect Last.
Raw water first passes through the 3-in-1 ceramic
cartridge, where sediment and fine particles are
reduced while silver impregnation and activated
carbon provide additional treatment.
The water then moves through the additional carbon
stage to further improve taste and quality before
reaching the final treatment stage.
Finally, the water passes through the UV module,
where ultraviolet light provides the final
disinfection barrier before the treated water
reaches the drinking outlet.
WHY IT MATTERS
Built For Enhanced Drinking Water Protection
The NML-3 with UV is designed for households that
want the additional protection of ultraviolet
disinfection together with multi-stage filtration.
3-in-1 Ceramic Filtration
Combines ceramic filtration, silver
impregnation and activated carbon treatment.
Additional Carbon Stage
Provides further carbon treatment to improve
taste and water quality.
UV Disinfection
The final ultraviolet stage provides
additional protection against pathogenic
microorganisms.
Point-of-Use Filtration
Designed to deliver treated drinking water
directly at the point of use.
PRODUCT SPECIFICATIONS
Technical Details
Key specifications of the Nectar NML-3 with UV
Triple Stage Drinking Water Filter.
Filtration Stages
3-in-1 Ceramic + Carbon + UV
Stage 1
3-in-1 Ceramic Filter Cartridge
Stage 2
Additional Carbon Stage
Stage 3
Ultra-Violet Lamp
Flow Rate
Approx. 120 Litres/hour
Subject to feed water pressure
Power Source
Required for UV Module
Stage 1 Replacement
Every 9–12 Months
Or earlier subject to water quality
Stage 2 Replacement
Every 4–6 Months
Or earlier subject to water quality
Stage 3 Replacement
UV Lamp After 9,000 Hours
Maximum Operating Pressure
60 PSI
Material
Reinforced Polypropylene
(Food Grade)
Activated Carbon
Ultra-Violet Lamp Module
Raw Water TDS
Below 500 ppm
Dimensions
21″ W × 15″ H × 6″ D
53.34 × 38.1 × 15.24 cm
Weight
Approx. 4.3 kg
Warranty
2 Years
LONG-TERM VALUE
Simple Multi-Stage Maintenance
Each treatment stage has its own maintenance
requirement, allowing the system to be serviced
according to water quality, usage and operating
conditions.
01
Stage 1 Ceramic
Replace approximately every 9–12 months
or earlier depending on water quality.
02
Stage 2 Carbon
Replace approximately every 4–6 months
or earlier depending on water quality.
03
Stage 3 UV Lamp
Replace the UV lamp after approximately
9,000 hours of operation.
UV ADVANTAGE
An Additional Final Barrier
The UV stage provides an additional disinfection
barrier after the water has already passed through
the ceramic and carbon filtration stages.
This multi-barrier approach combines physical
filtration, carbon treatment and ultraviolet
disinfection in one compact household drinking
water system.
WHAT’S IN THE BOX
Everything You Need To Start
The NML-3 with UV package includes the complete
triple-stage drinking water filter together with
the supplied fittings.
COMPLETE PACKAGE
NML-3 With UV + Fittings
The package includes one complete Nectar NML-3
with UV Triple Stage Drinking Water Filter
together with the supplied fittings.

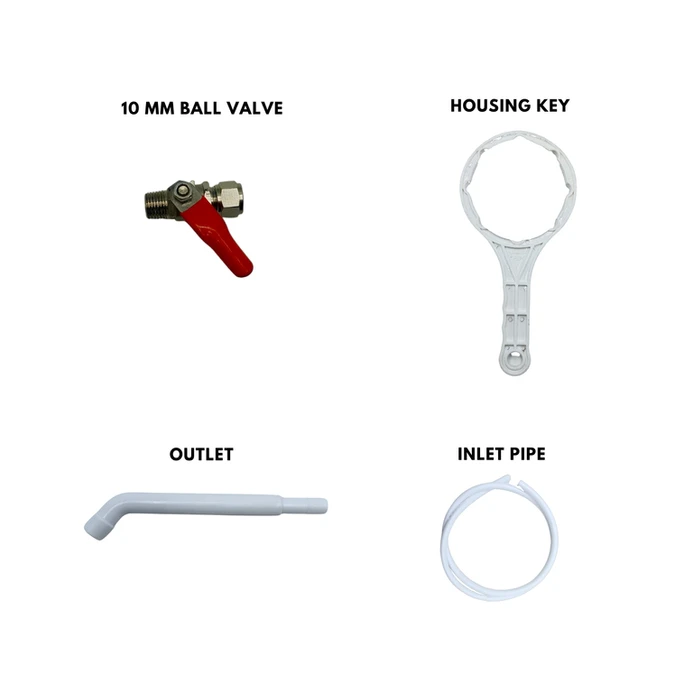

The illustrated parts image shows the associated
fittings and components supplied with the system.
Product Weight:
Approx. 4.3 kg
Dimensions:
21″ W × 15″ H × 6″ D
NECTAR WATER FILTRATION SYSTEMS
Trusted Water Filtration Expertise
Nectar has been developing and supplying water
filtration solutions in Pakistan since 1983.
The NML-3 with UV brings that experience together
with ceramic, carbon and ultraviolet technologies
for enhanced household drinking water protection.
1983
Established
3
Treatment Stages
60
PSI Max Pressure
120 L/h
Approx. Flow Rate
GOOD TO KNOW
Questions, answered
What does the NML-3 with UV filter do?
+
drinking water filter combining a 3-in-1 ceramic
cartridge, an additional carbon stage and a UV
disinfection stage.
What are the three treatment stages?
+
Stage 2 uses an additional carbon stage and
Stage 3 uses an ultra-violet lamp for final
disinfection.
What does the 3-in-1 ceramic cartridge do?
+
silver impregnation and activated carbon treatment
to reduce particles, provide disinfection support
and improve taste and odor.
What does the UV stage do?
+
treated water by targeting pathogenic microorganisms
as a final treatment barrier.
What is the flow rate?
+
subject to feed water pressure.
Does the NML-3 with UV require electricity?
+
requires electrical power to operate the
ultraviolet lamp.
When should the Stage 1 cartridge be replaced?
+
or earlier depending on water quality.
When should the Stage 2 cartridge be replaced?
+
4–6 months or earlier depending on water quality.
When should the UV lamp be replaced?
+
9,000 hours of operation.
What TDS is recommended for the NML-3 with UV?
+
raw water TDS below 500 ppm.
What is the maximum operating pressure?
+
What is included in the box?
+
with UV Triple Stage Drinking Water Filter
together with the supplied fittings.
