How Does a Water Softener Work?
Water softeners work using a resin bed and ion exchange process:
01/ Water flows into the softener
Hard water enters the softener and passes through a bed of resin beads.
02/Ion Exchange Stage
The resin beads are charged with sodium or potassium ions. As hard water passes through, the calcium and magnesium ions are attracted to the resin
03/Soft water exits
The now softened water, free of calcium and magnesium, exits the softener, ready for use
04/Regeneration cycle
After some time, the resin becomes saturated with calcium and magnesium. The system flushes a saltwater (brine) solution through.
WATER SOFTENER SIZES
MODEL | NOMINAL SERVICE FLOW RATE (GPM) | TANK SIZE (INCH) Dia x H | RESIN QTY. (CUBIC FOOT) | PIPE SIZE Dia. (INCH) | FLOOR SPACE WxL (INCH) |
FRP-10 | 6 | 10×44 | 1.2 | 1 | 12×22 |
FRP-13 | 10 | 13×54 | 2.5 | 1 | 15×25 |
FRP-16 | 14 | 16×65 | 4 | 1.5 | 18×28 |
FRP-21 | 26 | 21×60 | 6.5 | 2 | 23×33 |
FRP-24 | 32 | 24×72 | 9.5 | 2.5 | 26×36 |
FRP-30 | 50 | 30×72 | 15 | 3 | 32×46 |
FRP-36 | 71 | 36×72 | 22 | 3 | 38×52 |
FRP-42 | 98 | 42×78 | 29 | 3 | 44×58 |
FRP-48 | 126 | 48×82 | 36 | 3 | 50×72 |
FRP-55 | 173 | 55×83 | 53 | 3 | 57×82 |
FRP-63 | 222 | 63×103 | 84 | 3 | 65×89 |

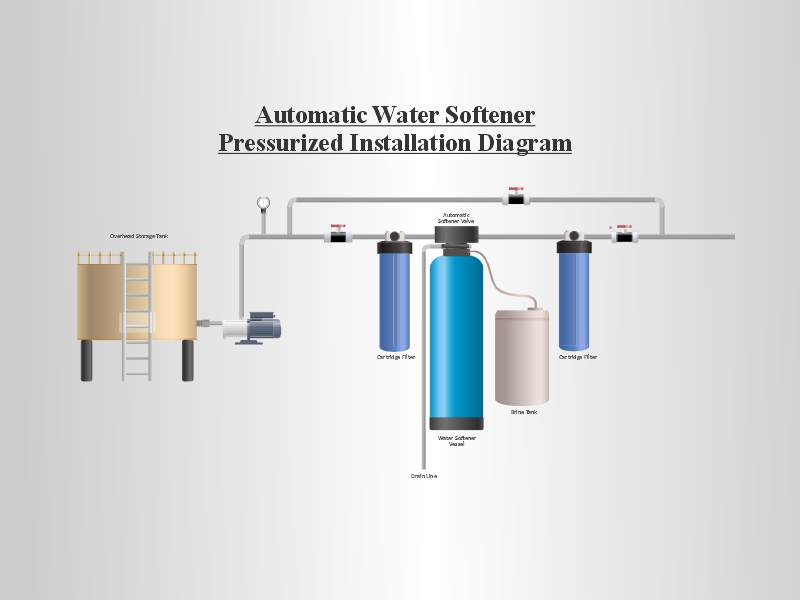

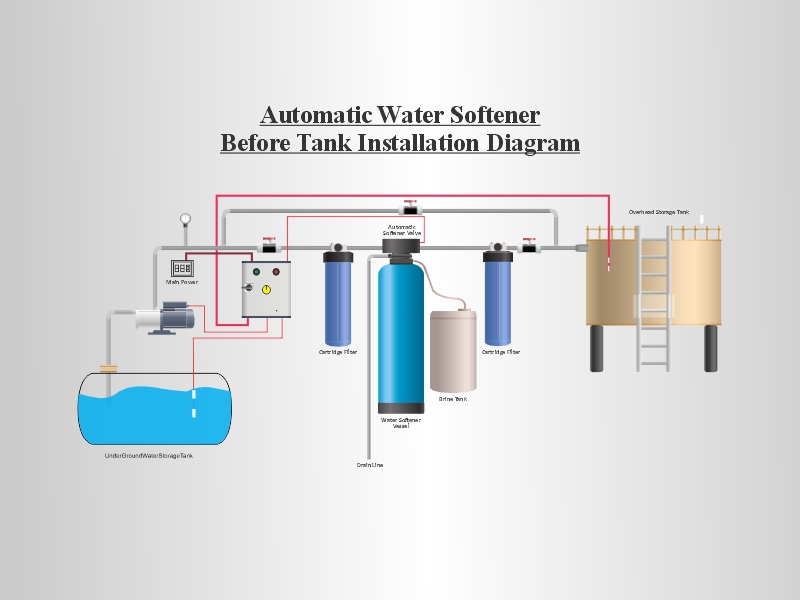

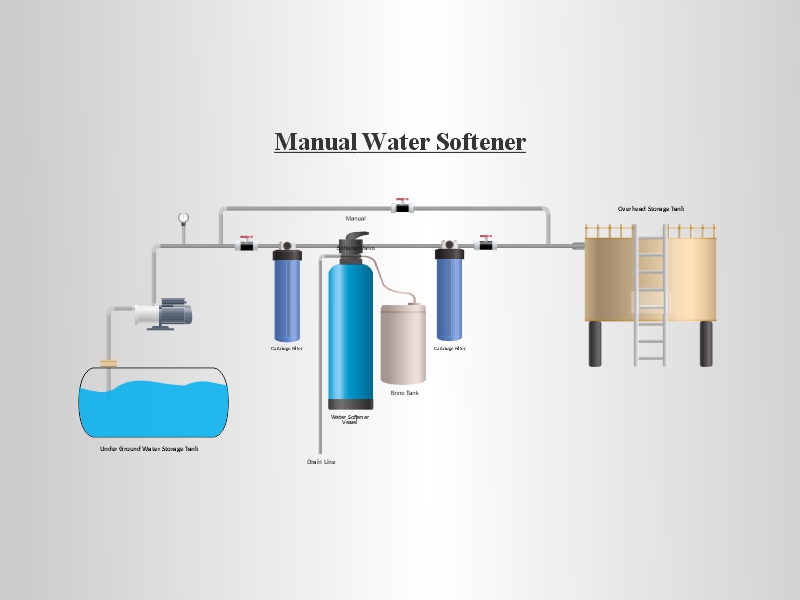

Installation Diagram of Water softener
