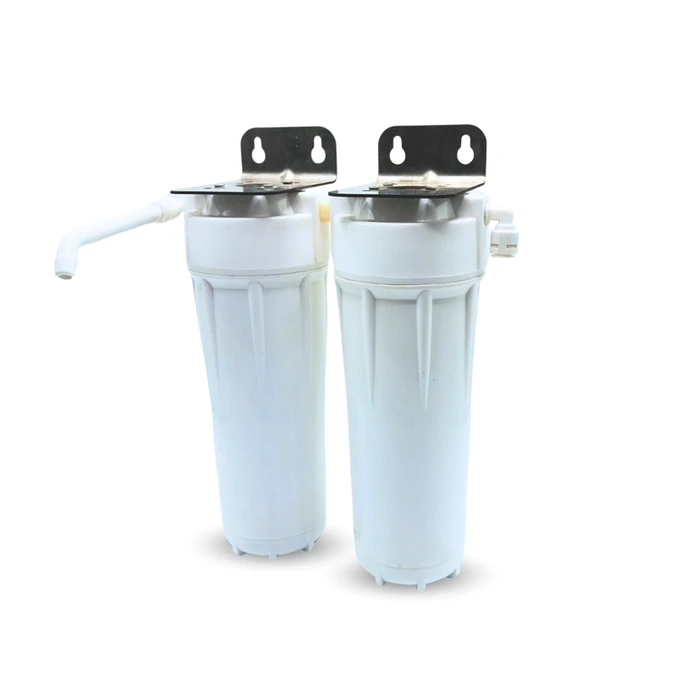

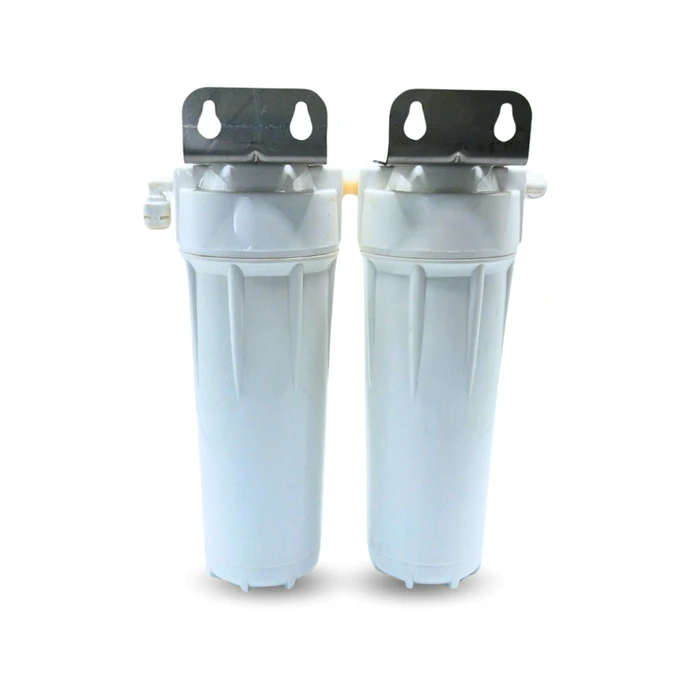

NML-2 DUAL STAGE DRINKING WATER FILTER
Two Stages. Four Layers. Purer Water.
The Nectar NML-2 combines a 3-in-1 ceramic cartridge
with a dedicated carbon block stage to reduce sediment,
bacteria, tastes, odors and harmful chemical impurities.
Dual-Stage Filtration
Combines a 3-in-1 ceramic cartridge with
a dedicated carbon block stage.
4-Layer Protection
Desilting, silver impregnation, activated carbon
and dedicated carbon block filtration.
No Electricity
Pressure-fed operation using standard household
water pressure.
Point-of-Use
Designed to reduce piping contamination and
provide fresh drinking water.
INSIDE THE SYSTEM
Four Layers. Two Stages.
The NML-2 combines advanced ceramic filtration with
dedicated carbon filtration for comprehensive
point-of-use drinking water treatment.

DUAL-STAGE TECHNOLOGY
Ceramic + Carbon Filtration
Stage 1 uses the proven 3-in-1 ceramic cartridge
to desilt, sterilize and deodorize the water.
Stage 2 adds a dedicated carbon block cartridge
to further refine taste, odor and chemical impurities.
FILTRATION TECHNOLOGY
Four Layers of Protection
Each layer performs a specific filtration function
as water moves through the two-stage system.
STAGE 01 · LAYER 01
Ceramic Shell
The sub-micron ceramic shell helps reduce sediment
and fine particles greater than approximately
0.5 microns.
STAGE 01 · LAYER 02
Silver Impregnation
Silver-impregnated media provides the disinfection
stage and helps neutralize pathogenic bacteria.
STAGE 01 · LAYER 03
Activated Carbon Core
The activated carbon core helps reduce taste,
odor and harmful chemical impurities.
STAGE 02 · LAYER 04
Carbon Block
A dedicated second-stage carbon block further
refines taste, odor and chemical impurities.
THE FULL SYSTEM
How NML-2 Filtration Works
Water passes through two dedicated filtration stages
before reaching the drinking water outlet.

WATER PATH
Ceramic First. Carbon Second.
Raw water enters through the inlet and first passes
through the 3-in-1 ceramic cartridge.
The water then moves through the dedicated carbon
block stage before leaving through the outlet,
ready for point-of-use drinking applications.
WHY NML-2
Built For Everyday Reliability
The NML-2 is designed for households that want
multi-stage drinking water filtration without
relying on electricity.
01
Zero Electricity
Runs on standard household water pressure
without requiring a power source.
02
Handles Tough Contaminants
Designed to tackle rust, dust, scale,
sediment, tastes, odors, cysts and
pathogenic bacteria.
03
Dual-Stage Protection
Ceramic filtration is followed by a
dedicated carbon block for additional
treatment.
04
Economical Upkeep
Cartridge replacement can be scheduled
according to water conditions and usage.

PRODUCT SPECIFICATIONS
What You’re Getting
Key technical specifications of the Nectar NML-2
Dual Stage Drinking Water Filter.
3-in-1 Ceramic + Carbon Block
Approx. 120 Litres/Hour
None · Pressure-Fed
Every 9–12 Months
Or earlier subject to water quality
Every 4–6 Months
Or earlier subject to water quality
60 PSI
Reinforced Polypropylene (Food-Grade)
Activated Carbon
Below 500 ppm
14″ W × 15″ H × 6″ D
Approx. 3.3 kg
2 Years
Point-of-Use Drinking Water

POINT-OF-USE FILTRATION
Fresh Drinking Water Where You Need It
The NML-2 is specially designed as a point-of-use
filter to help reduce piping contamination and
provide fresh drinking water to your family.
Non-Electric Operation
Works using standard household water pressure.
Food-Grade Construction
Reinforced polypropylene construction designed
for durability and safety.
Suitable for Fresh Water Sources
Recommended for water supplies with TDS
below 500 ppm.
Two-Year Warranty
Product is backed by a 2-year warranty.
LONG-TERM VALUE
Simple Cartridge Maintenance
The two cartridges have different replacement
intervals, allowing each filtration stage to be
maintained according to its actual service needs.
01
Stage 1 Ceramic
Replace every 9–12 months or earlier
depending on water quality.
02
Stage 2 Carbon Block
Replace every 4–6 months or earlier
depending on water quality.
DUAL-STAGE ADVANTAGE
More Than Basic Filtration
By combining ceramic and carbon technologies,
the NML-2 provides multiple filtration functions
within one compact household system.
The result is a practical filtration setup focused
on sediment reduction, disinfection, taste and odor
improvement, and reduction of chemical impurities.
IN THE BOX
Everything You Need To Start
The NML-2 package includes the complete dual-stage
drinking water filter with its required fittings.

COMPLETE PACKAGE
NML-2 Filter + Fittings
Includes one complete Nectar NML-2 Dual Stage
Drinking Water Filter together with the supplied
fittings.

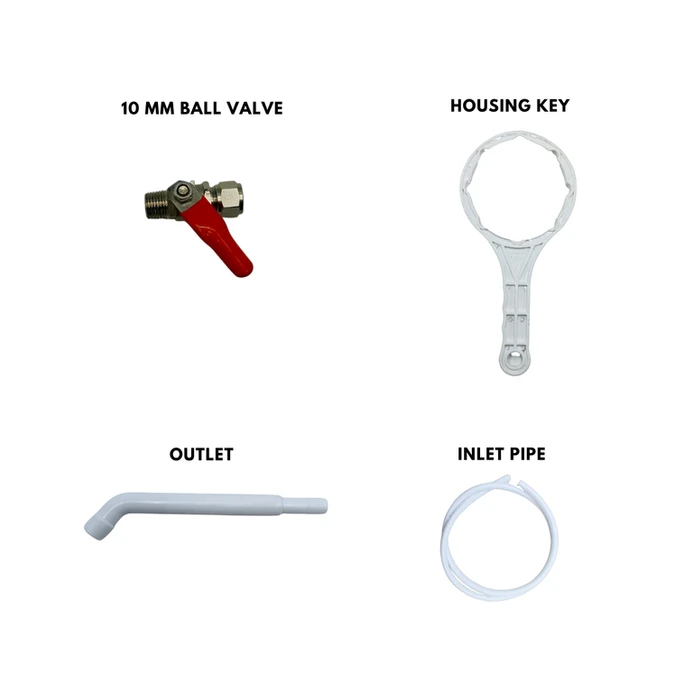

The illustrated parts image shows the associated
fittings and components included with the system.

NECTAR WATER FILTRATION SYSTEMS
Trusted Filtration Expertise
Nectar has been developing and supplying water
filtration solutions in Pakistan since 1983.
The NML-2 brings that experience into a practical
dual-stage household drinking water system.
Established
Filtration Stages
PSI Max Pressure
Approx. Flow Rate
GOOD TO KNOW
Questions, answered
What does the NML-2 filter do?
+
combining a 3-in-1 ceramic cartridge with a dedicated
carbon block stage to reduce sediment, tastes, odors
and harmful chemical impurities while providing
disinfection through silver impregnation.
What are the two filtration stages?
+
a ceramic shell, silver impregnation and an
activated carbon core. Stage 2 uses a dedicated
carbon block cartridge.
What is the flow rate?
+
subject to feed water pressure.
Does the NML-2 require electricity?
+
standard household water pressure without electricity.
When should the Stage 1 cartridge be replaced?
+
or earlier depending on water quality.
When should the Stage 2 cartridge be replaced?
+
4–6 months or earlier depending on water quality.
What TDS is recommended for the NML-2?
+
raw water TDS below 500 ppm.
What material is the filter made from?
+
(food-grade) construction together with activated
carbon filtration media.
What is included in the box?
+
Dual Stage Drinking Water Filter with fittings.
